MagnaClean XS-90
MagnaClean XS-90 is a super flexible, compact filter for the tightest of installations. Its design offers ultimate flexibility in installations / provides an opportunity to install a filter in 5 directions and previously inaccessible areashttps://youtu.be/NyiFlje4pi8?si=-5LCS3tZn2SHvnDk
Homeowner Benefits
- 7% annual savings on energy and bills*
- Instant continuous system protection
- Longer system life
- Reduced carbon emissions (200-250kg per year)
Installation and Service Instructions
Maintain peak performance
Whether you are installing MagnaClean XS-90 in a brand new boiler or retrofitting to an existing boiler, get the installation right to give the boiler the best protection. And serve it appropriately to help the filter run as strong as the day it was installed. To do both, simply follow our guide.

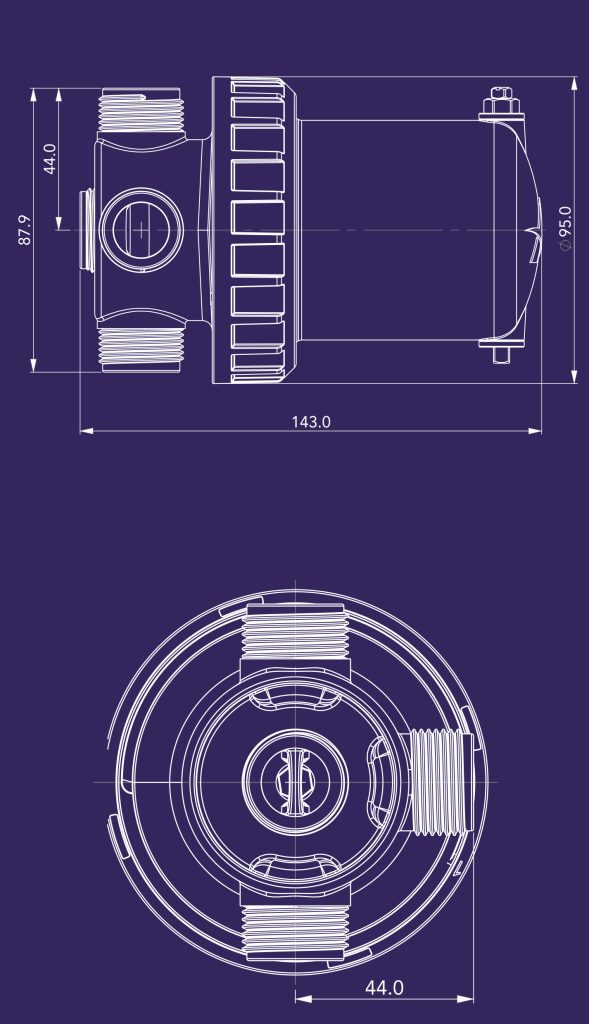

Technicial Specifications
Canister and Lid
- Canister and Threaded Ring Material: Glass Reinforced Polymer
- Fluid Capacity: 290 m
- Inlet Diameter: 3/4″ BSP
- Outlet Diameter: 3/4″ BSP
- Canister Thread: Pressure Gear
- Flow Configuration: One Way Valve
- Canister Seal: EPDM
Magnets
- Length: 82.5mm
- Diameter: 20 mm
Drainage Section
- Drain plug material: Brass
- Drain plug thread: M8 (non-standard)
- Seals: EPDM
Bleed Screw
- Body material: Brass
- Screw: Brass
- Theme interface: M
Servicing Clearance
- Ventilation: 20 mm
- Drain plug: 30 mm
Packaging and Transport
- Packed in single units with all components
Storage
- No special storage requirements required
Installer Benefits
- Strong MagnaClean® magnetic
- Ultimate flexibility in installation / 5-direction mounting possibility
- Super compact, space-saving filter
- Fits vertically, horizontally and anywhere in between
- Supplied ready to install
