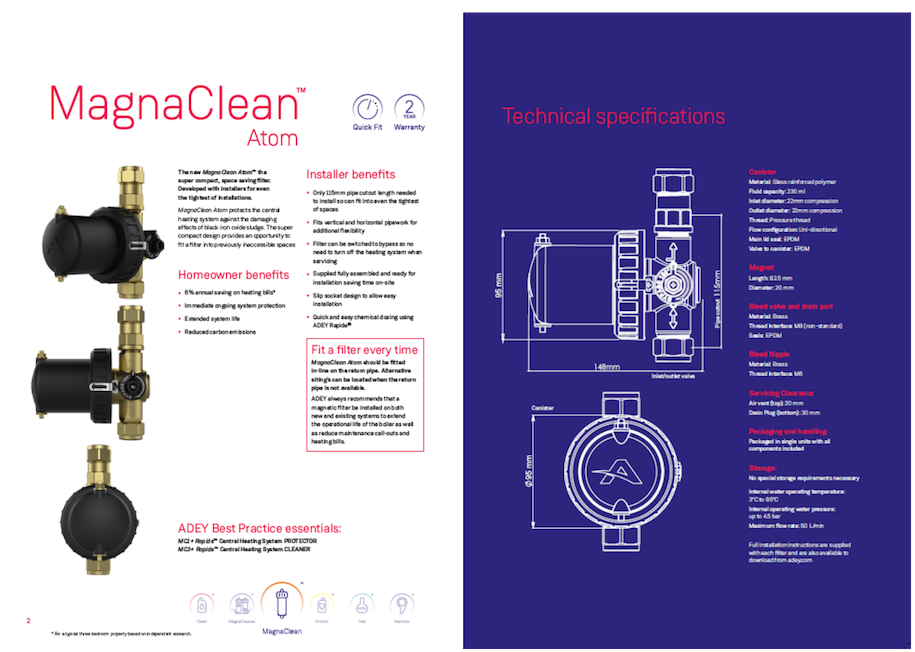

MagnaClean Atom
MagnaClean Atom® protects the central heating system against the damaging effects of black iron oxide sludge. The super-compact design provides an opportunity to fit a filter into previously inaccessible spaces
https://youtu.be/pIDj7zBF_1s?si=ZpiArlKk3tDLM6QS
Homeowner Benefits
- 6% annual saving on heating bills
- Immediate ongoing system protection
- Extended system life
- Reduced carbon emissions
- 10-year warranty when registered within 30 days of installation
Installation and Service Instructions
Maintain peak performance
Whether you’re fitting a MagnaClean Atom® on a brand new boiler or retrofitting it on an existing boiler, get the installation right to give the boiler the best protection. And to help keep the filter performing as powerfully as the day it was fitted, service it properly. To do both, simply follow our guide.

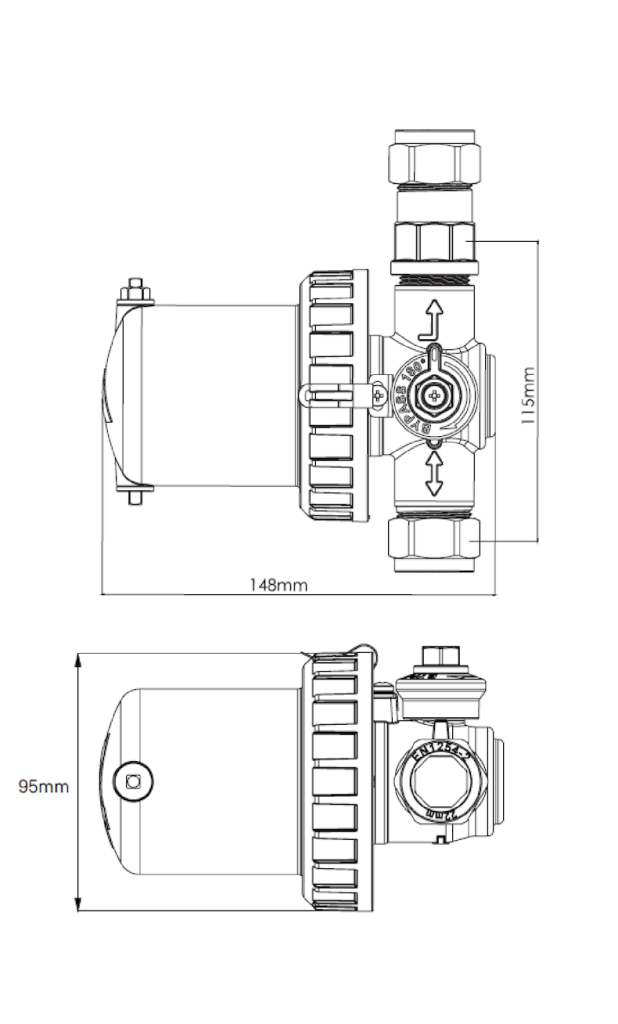

Technicial Specifications
Canister
Material: Glass reinforced polymer
Fluid capacity: 230ml
Inlet diameter: 22mm compression
Outlet diameter: 22mm compression
Thread: Pressure thread
Flow configuration: One direction only
Valve to canister seal: EPDM
Magnet length: 82.5mm
Magnet diameter: 20mm
Drain Port
Drain plug material: Brass
Drain plug thread: M8 (non-standard)
Seals: EPDM
Bleed Valve
Body material: Brass
Screw: Brass
Thread interface: M6
Servicing Clearance
Air vent: 20mm
Drain plug: 30mm
Packaging and Handling
Packaged in single units with all components included
Storage
No special storage requirements necessary
Installer Benefits
- Only 115mm needed to install so can fit into even the tightest of spaces
- Fits vertical and horizontal pipework for additional flexibility
- The canister can be placed in 4 positions, always ensuring the air vent is at the top, “A” on front of canister will be upright
- Filter can be switched to bypass so no need to turn off the heating system when servicing
- 2-way valve has a white indicator to show what mode the filter is in
- Supplied fully assembled and ready for installation saving time on-site
- Slip socket design to allow installation to be completed in just two minutes
- Quick and easy chemical dosing using ADEY Rapide®
- Recommended direction of flow is shown on the rear of the brass body
