MagnaClean Micro2

Don’t be fooled by its size. The MagnaClean® Micro2 is a compact filter, but its performance is still powerful. Streamlined to fit easily into the tightest of spaces, it provides exceptional protection against magnetite and other debris for small heating systems.

Homeowner Benefits

6% annual saving on heating bills
Immediate ongoing central heating protection
Extends the life of the central heating system
Reduced carbon emissions
10-year warranty when registered within 30 days of install

Installation and Service Instructions

Maintain peak performance
Whether you’re fitting a MagnaClean® Micro2 on a brand new boiler or retrofitting it on an existing boiler, get the installation right to give the boiler the best protection. And to help keep the filter performing as powerfully as the day it was fitted, service it properly. To do both, simply follow our guide.

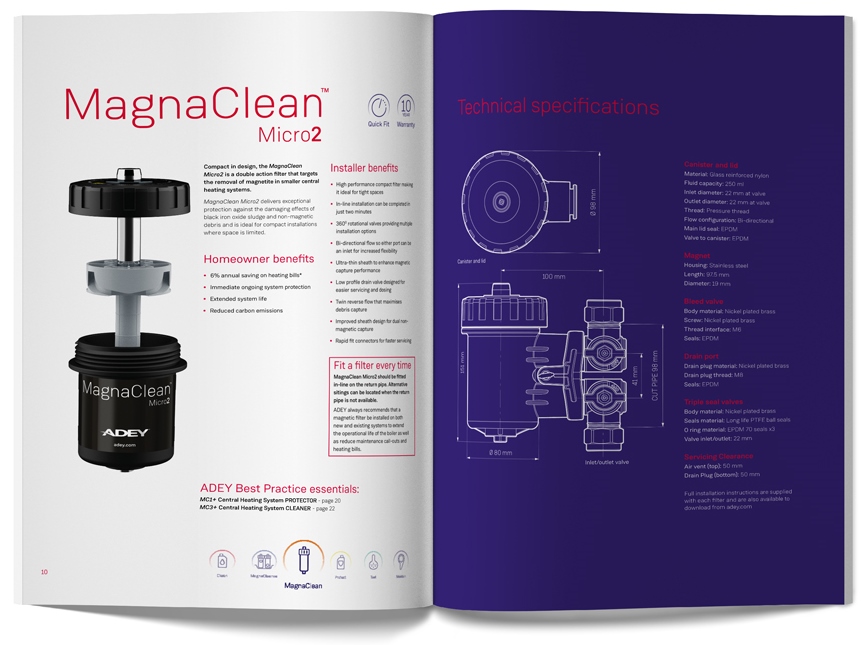

TECHNICAL PDF

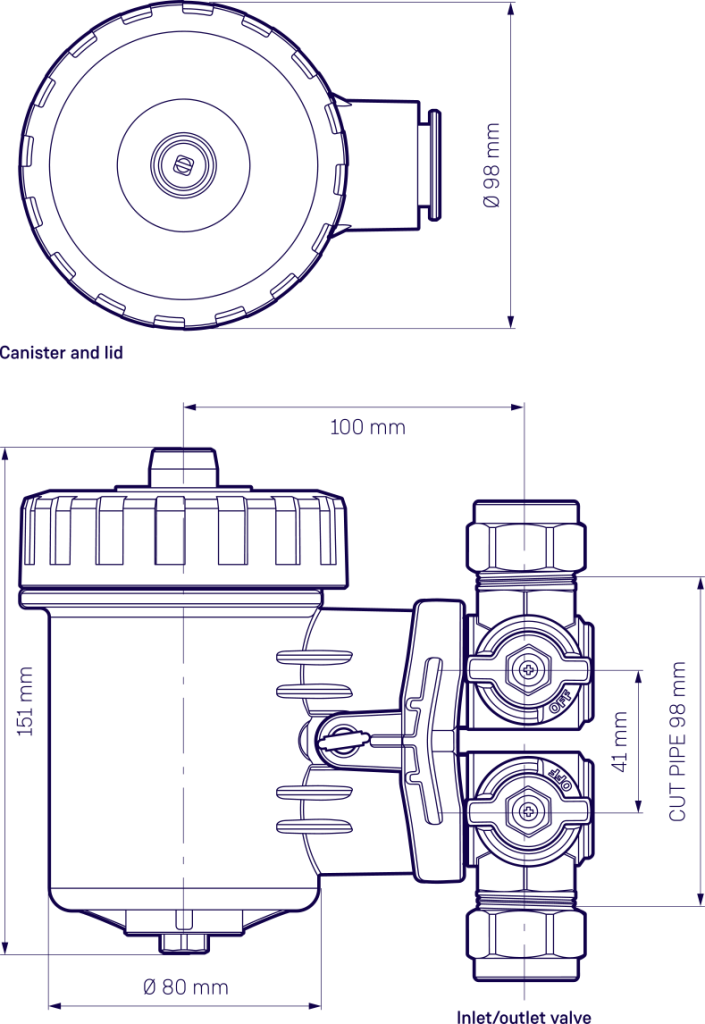

Technicial Specifications

Canister and Lid

Material: Glass reinforced nylon
Fluid capacity: 250ml
Inlet diameter: 22mm at valve
Outlet diameter: 22mm at valve
Thread: Pressure thread
Flow configuration: Bi-directional – either port can be inlet
Main lid seal: EPDM
Valve to canister: EPDM

Magnet

Housing: Stainless steel
Length: 97.5mm
Diameter: 19mm

Drain Port

Drain plug material: Nickel plated brass
Drain plug thread: M8
Seals: EPDM

Triple Seal Valves

Body material: Nickel plated brass
Seals material: Long life PTFE ball seals
O ring material: EPDM 70 seals x 3
Valve inlet/outlet: 22mm

Bleed Valve

Body material: Nickel plated brass
Screw: Nickel plated brass
Thread interface: M6
Seals: EPDM

Installer Benefits

High performance compact filter – ideal for tight spaces
In-line installation can be completed in just two minutes
360° rotational valves providing multiple installation options, only a quarter turn to isolate
Bi-directional flow means either port can be an inlet, increasing flexibility
Ultra-thin sheath to enhance magnetic capture
Low profile drain valve designed for easier servicing and dosing
Twin reverse flow, maximising debris capture
Improved sheath design for dual non-magnetic capture
Rapid fit connectors for faster servicing

https://youtu.be/vglEe5e1X84?si=YVVIEn00Rm5HgObi

MagnaClean Micro2 in Action

Magnetite can build up in untreated central heating systems, making them inefficient, causing cold spots on radiators and even boiler breakdowns. See how our filter works to remove the sludge and keep boilers working their bes.
