MagnaClean Professional2 XP
The more radiators there are, the bigger the magnetite problem. The answer is our MagnaClean Professional2XP. With extra filter capacity, it’s been designed specifically to handle the volume of larger systems.
Homeowner Benefits
- 6%* annual saving on heating bills (*For a typical three-bedroom property based on independent research)
- Immediate ongoing central heating system protection
- Extends the life of the central heating system
- Reduced carbon emissions
- 2-year warranty when registered within 30 days of installation
Installation and Service Instructions
Maintain peak performance
Whether you’re fitting a MagnaClean® Professional 2XP on a brand new boiler or retrofitting it on an existing boiler, get the installation right to give the boiler the best protection. And to help keep the filter performing as powerfully as the day it was fitted, service it properly. To do both, simply follow our guide.

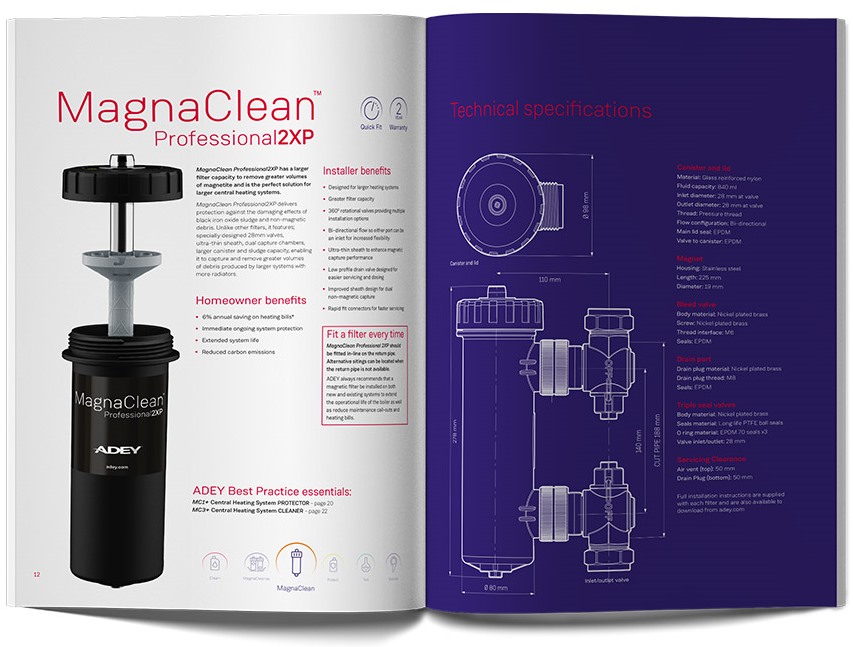

Technicial Specifications
Canister and lid
Material: Glass reinforced nylon
Fluid capacity: 840 ml
Inlet diameter: 28 mm at valve
Outlet diameter: 28 mm at valve
Thread: Pressure thread
Flow configuration: Bi-directional
Main lid seal: EPDM
Valve to canister: EPDM
Magnet
Housing: Stainless steel
Length: 225 mm
Diameter: 19 mm
Drain Port
Drain plug material: Nickel plated brass
Drain plug thread: M8
Seals: EPDM
Triple Seal Valves
Body material: Nickel plated brass
Seals material: Long life PTFE ball seals
O ring material: EPDM 70 seals x3
Valve inlet/outlet: 28 mm
Bleed Valve
Body material: Nickel plated brass
Screw: Nickel plated brass
Thread interface: M6
Seals: EPDM
Servicing Clearance
Air vent (top): 50 mm
Drain Plug (bottom): 50 mm
Installer Benefits
- Designed for larger heating systems and 28mm pipework
- Greater filter capacity
- 360° rotational valves providing multiple installation options
- Bi-directional flow means either port can be an inlet, increasing flexibility
- The full flow valves can be fitted in any orientation to accommodate different pipework runs, as long as the filter is upright
- Ultra-thin sheath to enhance magnetic capture
- Low profile drain valve designed for easier servicing and dosing
- Improved sheath design for dual non-magnetic capture
- Rapid fit connectors for faster servicing
https://youtu.be/OfnN-6tsDzE?si=1E0PHkYcdq_cjnio
The ADEY® Best Practice
The ADEY® Best Practice heating system protection is a five-step process using products engineered to ensure maximum efficiency in hydronic heating systems.
