MagnaClean Professional2
MagnaClean Professional2® has been expertly designed to maximise the capture of magnetite. Engineered to actively trap virtually all circulating debris, it never stops delivering the very best protection. No wonder it’s the UK’s first choice filter.
Homeowner Benefits
- 6%* annual saving on heating bills (*For a typical three-bedroom property based on independent research)
- Immediate ongoing central heating system protection
- Extends the life of the central heating system
- Reduced carbon emissions
- Correctly sized filter for the central heating system
- 10-year warranty if registered within 30 days of install

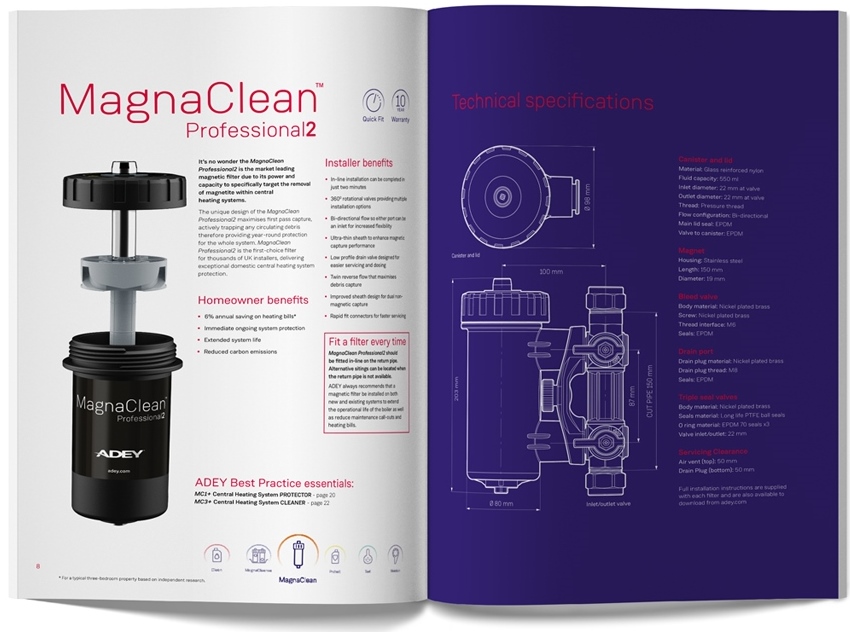

Installation and Service Instructions
Maintain peak performance
Whether you’re fitting a MagnaClean Professional2® on a brand new boiler or retrofitting it on an existing boiler, get the installation right to give the boiler the best protection. And to help keep the filter performing as powerfully as the day it was fitted, service it properly. To do both, simply follow our guide.

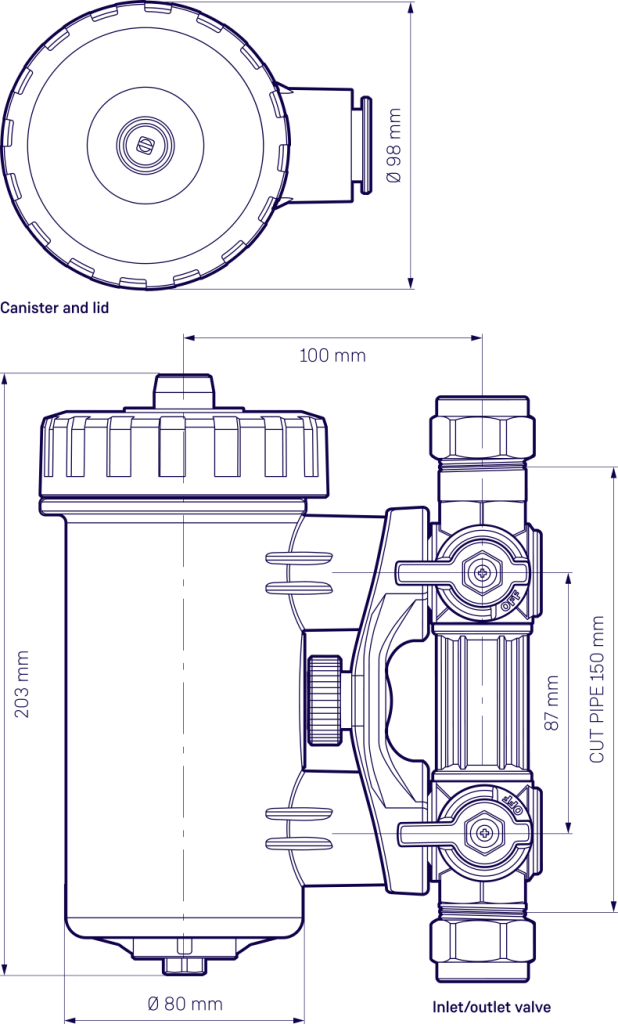

Technicial Specifications
Canister and lid
Material: Glass reinforced nylon
Fluid capacity: 550 ml
Inlet diameter: 22 mm at valve
Outlet diameter: 22 mm at valve
Thread: Pressure thread
Flow configuration: Bi-directional
Main lid seal: EPDM
Valve to canister: EPDM
Magnet
Housing: Stainless steel
Length: 150 mm
Diameter: 19 mm
Drain Port
Drain plug material: Nickel plated brass
Drain plug thread:
Seals: EPDM
Triple Seal Valves
Body material: Nickel plated brass
Seals material: Long life PTFE ball seals
O ring material: EPDM 70 seals x3
Valve inlet/outlet: 22 mm
Bleed Valve
Body material: Nickel plated brass
Screw: Nickel plated brass
Thread interface: M6
Seals: EPDM
Servicing Clearance
Air vent (top): 50 mm
Drain Plug (bottom): 50 mm
Installer Benefits
- In-line installation can be completed in just two minutes
- 360° rotational valves providing multiple installation options
- Bi-directional flow means either port can be an inlet, increasing flexibility
- Ultra-thin sheath to enhance magnetic capture
- Low profile drain valve designed for easier servicing and dosing
- Twin reverse flow, maximising debris capture
- Improved sheath design for dual non-magnetic capture
- Rapid fit connectors for faster servicing
https://youtu.be/-ea_g-oBB3w?si=voOLW0NK0XfWJyOm
MagnaClean Professional 2 in Action
Magnetite can build up in untreated central heating systems, making them inefficient, causing cold spots on radiators and even boiler breakdowns. See how our filter works to remove the sludge and keep boilers working their best
